How PCB Layout Affects Wireless Performance

Wireless performance is often discussed as if it were determined mainly by the radio chip, antenna type, or communication protocol. Those factors do matter, but they do not tell the whole story. In real products, PCB layout often has just as much influence on wireless behavior as the module itself.

A device may use a proven Wi-Fi, Bluetooth, Zigbee, LoRa, or cellular module and still show disappointing range, unstable pairing, poor sensitivity, or inconsistent field performance. In many cases, the problem is not the RF component selection. It is the way the board was laid out around that component.

This is especially common in compact connected products, where industrial design, power circuits, sensors, displays, batteries, connectors, and enclosure constraints all compete for limited space. Under those conditions, wireless performance becomes an IoT PCB design challenge, not just a radio selection exercise.

This article looks at how PCB layout affects wireless performance, what mistakes most often cause problems, and what design choices help connected products perform more reliably in the real world.

Wireless Performance Does Not Come From the Module Alone

It is easy to assume that using a certified RF module solves most wireless concerns. In practice, that is only partly true.

A module may have excellent RF characteristics under reference conditions, but once it is mounted on a real PCB, its operating environment changes. The antenna may sit near copper pours, switching regulators, metal shields, batteries, displays, or cables. Ground return paths may behave differently than intended. Noise from nearby circuits may interfere with reception. Even the enclosure may alter how the antenna radiates.

That is why two products built around the same wireless chipset can perform very differently in the field. The difference often comes down to layout discipline.

A good layout helps the radio operate in a predictable environment. A weak layout forces it to fight board-level interference, detuning, coupling, and signal loss that should have been prevented earlier.

The Main Ways PCB Layout Influences Wireless Performance

PCB layout affects wireless performance through several mechanisms at once. Some are obvious, such as poor antenna placement. Others are more subtle, such as return path discontinuity or digital noise coupling into sensitive RF areas.

The most important layout-related factors usually include:

• antenna placement and keep-out control
• ground design around the RF section
• proximity of noisy circuits
• trace routing quality
• power supply noise
• shielding and enclosure interaction
• component placement around the wireless path
• consistency between prototype and production layout behavior

Wireless issues are rarely caused by only one mistake. More often, performance drops because several small layout compromises accumulate until the margin disappears.

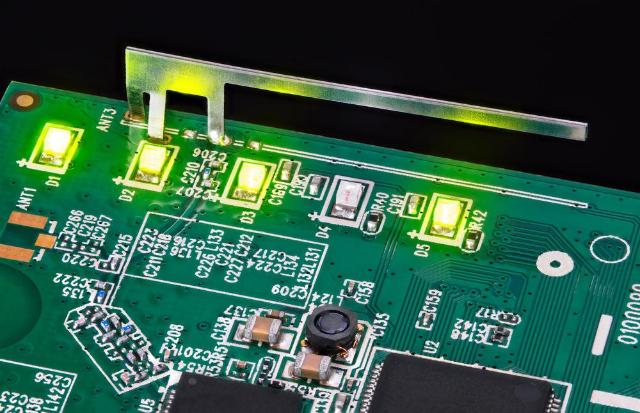

Antenna Placement Has an Outsized Impact

If there is one layout factor that most directly affects wireless performance, it is antenna placement.

An antenna needs space to radiate efficiently. When it is placed too close to large copper areas, ground floods, metal parts, batteries, displays, or high-density circuitry, its effective behavior changes. The result may be reduced range, poorer efficiency, weaker sensitivity, or greater variation from unit to unit.

In compact devices, this problem appears constantly. Designers may treat the antenna region as unused space that can hold extra routing, test points, or mechanical features. But from an RF perspective, that “unused” area is often exactly what the antenna needs to function properly.

A well-placed antenna usually benefits from:

• edge placement on the PCB where possible
• a clearly defined keep-out region
• distance from batteries, displays, shields, and large metal objects
• minimal routing beneath or around the radiating area
• layout that follows the antenna or module vendor’s reference guidance closely

A badly placed antenna may still allow the device to work in the lab, but it often becomes unreliable once real-world distance, obstacles, and enclosure effects are introduced.

Keep-Out Regions Are Not Optional Empty Space

One of the most common RF layout mistakes is ignoring the antenna keep-out region.

Design teams under space pressure often see the keep-out area as wasted board space. They may run traces through it, place copper fills nearby, add mechanical hardware, or route signals beneath the antenna to save room. These choices may look harmless in a dense PCB layout, but they can significantly alter the antenna’s impedance and radiation pattern.

That matters because antennas are highly sensitive to their surrounding environment. Even small changes in nearby conductive structures can detune them or reduce efficiency.

This is particularly important with chip antennas, PCB antennas, and modules with integrated antennas. These solutions are convenient, but they usually depend heavily on the layout being close to the reference design. Once the surrounding copper or component environment changes too much, the published RF performance is no longer a reliable guide.

When the layout guide says to keep copper and routing away from the antenna region, that is not a suggestion for ideal conditions. It is often a basic requirement for acceptable performance.

Ground Design Around RF Circuits Must Be Controlled

Grounding is one of the most misunderstood parts of wireless PCB layout.

Designers are often told that solid ground is always good, and in general that is true. But RF layout requires more nuance. Poorly shaped or interrupted return paths can increase emissions and degrade signal integrity, while uncontrolled ground placement near an antenna can also reduce radiation efficiency.

This means the board needs two things at the same time:

• stable and continuous grounding where the RF circuitry needs a predictable return path
• carefully controlled copper behavior near the antenna so the antenna can radiate as intended

For the radio section itself, ground continuity is usually important for stability and low-noise operation. For the antenna region, however, the layout must follow the antenna structure’s intended environment. Some antenna designs require defined ground clearance areas, while others rely on a particular ground reference shape nearby.

The key point is that ground should be intentional. Random pours, split regions, narrow return bottlenecks, or last-minute copper additions can all affect wireless performance in ways that are difficult to diagnose later.

Noisy Power Circuits Can Quietly Damage RF Performance

Wireless problems are not always caused by the antenna itself. Many come from power supply noise.

Switching regulators, high-current drivers, LED circuits, displays, motors, relays, and fast digital interfaces can all inject noise into the board. If those circuits are placed too close to the wireless section, or if their return paths are poorly controlled, they can reduce receiver sensitivity or create communication instability.

This issue is common in IoT products, where one compact board may include:

• a wireless module
• a DC-DC converter
• an MCU
• sensor interfaces
• battery charging circuitry
• indicator LEDs
• displays or touch controls

Electrically, all these functions can coexist. Physically, they may interfere with each other if layout discipline is weak.

Some of the most useful layout practices include:

• keeping switching regulators away from the antenna and RF front end
• minimizing loop area in noisy power paths
• placing decoupling components close to the devices they support
• separating noisy and sensitive functional zones
• controlling current return paths so noise does not spread into RF regions

A radio that looks unstable in testing is not always badly designed at the RF level. Sometimes it is simply living too close to a noisy board environment.

Trace Routing Matters More Than Many Teams Expect

In RF and wireless boards, routing is not just a connectivity task. It is part of the signal path.

RF feed traces between the transceiver, matching network, and antenna should be treated carefully. Their geometry, reference plane condition, via usage, bends, and surrounding environment all influence how efficiently energy reaches the antenna.

Poor routing practices can introduce mismatch, loss, and unwanted coupling. Common problems include:

• unnecessarily long RF traces
• multiple vias in the RF path
• abrupt width changes
• routing too close to noisy digital or power nets
• broken or inconsistent reference planes beneath the trace
• casual trace bends in impedance-sensitive sections

At lower-frequency wireless products, some of these issues may seem forgiving during early tests. But as margins shrink, especially in small products or weak-signal environments, routing quality becomes more important.

The best RF routing is usually simple, short, controlled, and predictable.

Component Placement Around the Wireless Path Can Create Hidden Problems

Wireless layout is not only about the antenna and RF trace. Nearby components matter too.

Large inductors, metal-can oscillators, shielding structures, batteries, connectors, displays, and even tall passive components can disturb RF behavior if placed too close to sensitive areas. Sometimes the problem is direct electromagnetic interaction. Sometimes it is mechanical, such as placing a battery in a position that blocks the intended antenna radiation path.

This is why wireless layout should be reviewed in three dimensions, not only as a 2D PCB drawing. A layout may look reasonable from the top view while still placing the antenna in a poor physical environment once the enclosure, cables, and battery pack are added.

Good RF-aware placement usually means:

• keeping large metal objects away from the antenna
• avoiding high-profile components in critical radiation zones
• not crowding the matching network or RF feed region
• considering final assembly geometry, not only bare board layout
• reviewing cable paths and battery locations early

In many wireless devices, the final performance problem is not on the schematic. It is in the physical relationship between the RF section and everything around it.

The Enclosure Can Reinforce or Undermine the Layout

A wireless PCB never operates alone. It operates inside a product.

Plastic enclosures, decorative coatings, internal brackets, batteries, shields, cables, and mounting hardware can all influence how the antenna behaves. This means a layout that looks acceptable on a lab bench may perform differently once assembled into the final product.

That is why RF layout decisions should always be made with enclosure interaction in mind. If the industrial design places metal near the antenna, or if the battery sits directly behind it, the board layout may need to change. Waiting until the prototype stage to discover this often leads to rushed compromises.

A strong process treats PCB layout and enclosure design as linked decisions. The RF section should be reviewed in the actual mechanical context as early as possible.

For connected products, the real question is not whether the bare board transmits. The question is whether the assembled product maintains good wireless behavior in the final housing.

Layout Consistency Affects Production Consistency

Wireless performance is not only a prototype problem. It is also a production problem.

A layout that is highly sensitive to copper variation, assembly tolerance, connector position, shield placement, or enclosure alignment may produce inconsistent RF behavior across manufacturing lots. One batch may work well, while another shows weaker range or more frequent connectivity issues.

This is one reason why layout robustness matters. A good wireless PCB layout is not only optimized for peak performance in one sample. It is designed to tolerate normal manufacturing variation without collapsing performance margin.

This usually means:

• following proven reference layouts where possible
• avoiding marginal antenna environments
• keeping RF geometry simple and repeatable
• controlling surrounding copper and stack-up behavior
• validating multiple builds, not just one engineering sample

In real products, consistency often matters as much as raw RF performance.

Common PCB Layout Mistakes That Hurt Wireless Performance

A number of layout mistakes appear repeatedly in wireless products.

Placing the Antenna Too Close to Other Circuits

When the antenna is crowded by logic, power circuitry, metal shielding, or batteries, efficiency often drops.

Routing Signals Through the Antenna Keep-Out Area

This is one of the fastest ways to reduce antenna performance without obvious visual warning.

Putting Switching Power Too Close to the RF Section

Regulators and other noisy circuits can lower receiver performance or cause intermittent instability.

Ignoring the Vendor Reference Layout

Many module and antenna vendors provide specific placement and keep-out guidance. Deviating from it without strong RF validation is risky.

Breaking the Reference Plane Beneath Critical RF Routing

Inconsistent return conditions can affect impedance and signal behavior.

Testing Only on an Open Bench

A product that works without the enclosure may behave differently once fully assembled.

Treating RF as a Late-Stage Tuning Problem

If wireless performance is not considered early in layout, the fixes later are usually more difficult and less elegant.

How to Improve Wireless Performance Through Better Layout Practice

Improving wireless performance does not always require a new radio or a more expensive antenna. Often it starts with better layout discipline.

A more reliable process usually includes:

Define the RF Zone Early

Do not wait until the board is crowded. Reserve the antenna and RF area from the beginning.

Protect the Antenna Environment

Respect keep-out regions, avoid unnecessary copper, and consider nearby mechanical structures.

Separate Noisy and Sensitive Functions

Power conversion, high-current switching, and fast digital activity should be kept under control around the RF section.

Keep RF Routing Short and Clean

Avoid unnecessary complexity between the radio and antenna.

Validate in the Real Enclosure

Wireless testing should reflect the final product, not just a naked board on the bench.

Review Layout With Both Electrical and Mechanical Teams

RF performance depends on the interaction between board, battery, enclosure, and assembly geometry.

Optimize for Repeatability

The goal is not only strong lab performance. It is consistent production behavior across units.

Wireless Performance Is a System-Level Outcome

One reason wireless bugs are frustrating is that they often do not belong to a single discipline.

The RF engineer may point to the layout.
The layout engineer may point to the enclosure.
The firmware team may point to unstable signal conditions.
The mechanical team may point to size constraints.
The manufacturing team may point to variation in assembly.

In reality, wireless performance sits at the intersection of all of these. PCB layout is central because it connects them. It defines how the radio, antenna, power system, and physical product environment interact.

That is why good wireless products are rarely created by RF component selection alone. They come from coordinated design decisions that preserve RF performance across the entire board and final product structure.

Final Thoughts

PCB layout has a direct and often decisive effect on wireless performance. Antenna placement, keep-out control, grounding, noisy circuit separation, routing quality, component positioning, and enclosure interaction all influence how well a connected product communicates in the real world.

A wireless design can look correct in the schematic and still perform poorly if the board layout works against it. On the other hand, a well-executed layout can help even a compact, cost-sensitive product achieve stable and reliable wireless behavior.

That is why wireless performance should not be treated as a module-level specification alone. It should be treated as a PCB design responsibility from the beginning, and one that experienced PCB manufacturer also understand well during prototyping and production.
